Actuador pneumático de efeito duplo GS Heavy Duty aço-carbono

  • benefícios
  • características
  • materiais
  • diagramas e torques de partida
  • especificações
  • acessórios
  • documentos

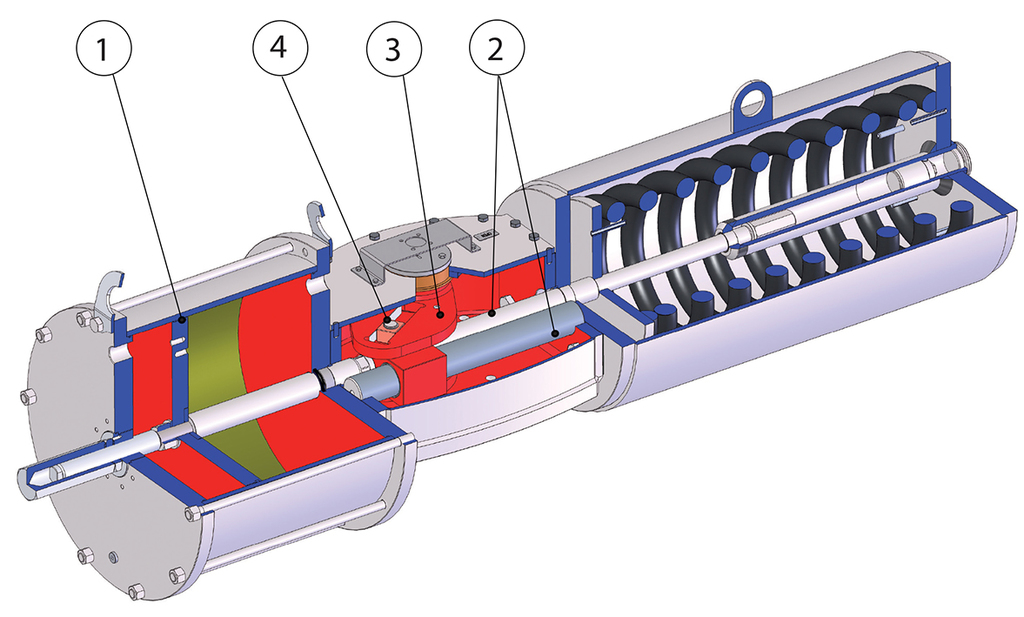

1 Faixas de deslizamento em PTFE carregadas Grafite
Menor atrito entre o pistão e o cilindro
Se evita a colagem das faixas de deslizantes ao cilindro, mesmo após longos períodos de inatividade
Reduz o efeito “stick-slip”

2 Haste e barra guia de aço cromado com dureza de cerca de 200 HB
Maior resistência à corrosão
Menos atrito entre a haste, a barra guia e as buchas de deslizamento com consequente menor desgaste das peças

3 Sistema de conversão de movimento de linear a rotativo separado do fluido de comando do atuador.
Possibilidade de suprir o atuador com Gases Técnicos
Atmosferas explosivas são evitadas

4 Scotch yoke com atrito de rolamento (transformação do movimento linear em movimento rotativo através de pistão e eixo sem engrenagens).
Menor atrito entre o pistão e o eixo, resultando em menor desgaste das peças
Momento de rotação aprimorado na fase de abertura e fechamento

Buchas de bronze
Garantem um menor desgaste em relação a buchas de outros materiais

Certificado ATEX
Permite instalação na presença de ambiente potencialmente explosivo

Certificados até SIL 3
Alto nível de segurança funcional

Dados técnicos:
torques nominais: de cerca de 2000 Nm a 30.000 Nm
Flanges de acordo com DIN / ISO 5211, DIN 3337
Ângulo de rotação nominal: 90° com ajuste de curso -5° + 95°
Pressão de alimentação: de 3 bar a 8,5 bar (para pares entregues, consultar as tabelas)
Para a versão de efeito duplo, o momento de rotação é diretamente proporcional à pressão de alimentação do atuador
Para a versão de efeito simples, o momento de rotação de retorno (falta de alimentação no atuador) depende apenas da ação da mola e é independente da pressão de alimentação
Execuções disponíveis: efeito duplo, retorno de mola normalmente fechado (NC), retorno de mola normalmente aberto (NO)
Configurações de corpo central: Scotch Yoke simétrica (symmetrical) ou Scotch Yoke assimétrica (canted)

Condições de operação:
Faixa de temperatura - versão standard: -20°C a + 80°C (material da guarnição: NBR)
Versão especial - alta temperatura: de -20°C a + 150°C (material da guranição: FKM)
Fluido de alimentação: ar comprimido filtrado, não necessariamente lubrificado, gases inertes, gases técnicos
Para temperaturas abaixo de 0°C, usar ar seco
Em caso de lubrificação, usar óleo não detergente compatível com os materiais internos da versão do atuador em uso

Normas de projeto:
Projeto de acordo com EN 15714-3, ISO 5211, ISO 12490.

PosDescrição
Materiais
1Corpo central
Aço carbono
2Garfo
Aço carbono
3Bucha do garfo  Bronze
4Barra de guia
Liga de aço (cromado)
5Bucha de deslizamento
Bronze
6Válvula de ventilação (não mostrada)
Latão
7Bloco de guia Aço carbono
8Cara Liga de aço
9Haste do pistão
Liga de aço (cromado)
10Pistão Aço carbono
11Flange  Aço carbono
12O-ringNBR
13Cilindro Aço carbono (niquelado)
14Bucha da haste do pistão Aço + bronze + PTFE
15Guarnição NBR+Poliuretano
16O-ringNBR
17Anel de rolagem PTFE + grafite
18O-ringNBR
19Grão de ajuste
Liga de aço
20Grão de ajuste
Liga de aço
21Mola  Liga de aço
22Pacote de molas
Aço carbono
23Bucha  Aço + bronze + PTFE
24Bucha   Aço + bronze + PTFE
25Haste de mola Liga de aço (cromo)

Efeito Simples Normalmente Fechado - Tabela de torques (momentos de torque)

Número do modelo
Torque máximo Nm
3 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.000





GHDP-085C-385A-C29.0003.8021.0011.1142.0001.2052.324
GHDP-085C-435A-C29.0005.5631.7042.0901.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.00010.1032.2112.2196.4173.8117.099
GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.00012.4193.0553.2588.1385.01710.196
GHDP-130C-635A-C132.00016.5884.7455.5678.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.00015.0833.3293.35210.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.00017.0754.4574.93110.8596.78014.156
GHDP-130C-735A-C532.00021.8376.3707.56910.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Número do modelo
Torque máximo Nm
3 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0001.4413933832.3361.1231.475
GHDP-085S-385A-C29.0002.4211.1381.4542.3261.1161.464
GHDP-085S-435A-C29.0003.5431.8482.6812.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.000





GHDP-085S-435A-C39.0002.6529249153.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.000





GHDP-085S-435A-C59.0002.2955445254.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.0005.8342.2812.3176.3152.7643.228
GHDP-100S-585A-C118.0007.6793.5114.3336.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.000





GHDP-100S-535A-C218.0004.5899989567.4413.4954.460
GHDP-100S-585A-C218.0006.4342.6942.9727.4543.5034.474
GHDP-100S-535A-C318.000





GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.000





GHDP-130S-535A-C132.0005.4841.6691.6409.4664.6946.407
GHDP-130S-585A-C132.0007.9093.5544.2919.4834.7056.426
GHDP-130S-635A-C132.00010.5645.2537.1939.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.0006.9501.6401.58211.7255.6267.374
GHDP-130S-635A-C232.0009.6054.0404.48411.7575.6467.409
GHDP-130S-685A-C232.00012.4245.8767.56611.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.000





GHDP-130S-635A-C532.0008.0543.2223.36112.6866.4088.942
GHDP-130S-685A-C532.00010.8745.0816.44312.6686.3968.922
GHDP-130S-735A-C532.00013.9077.0109.75812.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.00011.9834.5884.56916.9438.17910.802



Número do modelo
Torque máximo Nm
3,5 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0003.0706967092.0081.2112.340
GHDP-085C-385A-C29.0004.8681.4291.7052.0001.2052.324
GHDP-085C-435A-C29.0006.9252.2412.8441.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.0005.5261.3361.4113.2541.9503.713
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0004.9661.0941.1013.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.0009.6561.9761.9716.4063.8037.076
GHDP-100C-585A-C218.00013.0323.4443.8416.4173.8117.099
GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.0009.8992.1141.6868.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.00011.8332.8082.9338.1245.00710.167
GHDP-130C-585A-C132.00016.2714.6185.3918.1385.01710.196
GHDP-130C-635A-C132.00021.1266.5448.0818.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.00014.7653.1783.17610.0826.07311.701
GHDP-130C-635A-C232.00019.6215.2315.86510.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.00017.1864.5024.99210.8756.79214.189
GHDP-130C-685A-C532.00022.3566.5767.85610.8596.78014.156
GHDP-130C-735A-C532.00027.9178.77610.93710.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.00024.8976.2206.69614.5638.80817.139

Número do modelo
Torque máximo Nm
3,5 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0001.9558359452.3361.1231.475
GHDP-085S-385A-C29.0003.1001.5692.1972.3261.1161.464
GHDP-085S-435A-C29.0004.4102.3923.6282.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.000





GHDP-085S-435A-C39.0003.5191.5641.8633.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.000





GHDP-085S-435A-C59.0003.1621.3291.4734.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.0005.4451.9081.8916.3112.7623.225
GHDP-100S-535A-C118.0007.3943.3274.0226.3152.7643.228
GHDP-100S-585A-C118.0009.5444.7046.3726.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.000





GHDP-100S-535A-C218.0006.1492.5012.6617.4413.4954.460
GHDP-100S-585A-C218.0008.2993.9115.0117.4543.5034.474
GHDP-100S-535A-C318.0005.5482.0311.4469.1394.3865.400
GHDP-100S-585A-C318.0007.5503.1863.3869.1394.3865.400
GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.0006.3802.5112.25210.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.0004.9721.1241.0809.4624.6916.403
GHDP-130S-535A-C132.0007.5353.3103.8829.4664.6946.407
GHDP-130S-585A-C132.00010.3625.1256.9729.4834.7056.426
GHDP-130S-635A-C132.00013.4547.07410.3529.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.0009.4033.9054.26311.7255.6267.374
GHDP-130S-635A-C232.00012.4955.9227.64311.7575.6467.409
GHDP-130S-685A-C232.00015.7888.01111.24211.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.0007.8523.0813.14012.6556.3888.908
GHDP-130S-635A-C532.00010.9455.1266.52012.6866.4088.942
GHDP-130S-685A-C532.00014.2377.21810.11912.6686.3968.922
GHDP-130S-735A-C532.00017.7799.44513.99012.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.00012.3134.8344.93016.9638.19210.824
GHDP-130S-735A-C632.00015.8557.1988.80116.9438.17910.802



Número do modelo
Torque máximo Nm
4 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0003.8781.0321.1562.0081.2112.340
GHDP-085C-385A-C29.0005.9341.8512.2962.0001.2052.324
GHDP-085C-435A-C29.0008.2862.7753.5981.9961.2022.315
GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.0006.8871.8932.1653.2541.9503.713
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0006.3271.6671.8553.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.00010.5642.4162.4745.4533.0955.117
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.0008.8551.9791.7136.5433.8337.076
GHDP-100C-535A-C218.00012.1063.0663.3296.4063.8037.076
GHDP-100C-585A-C218.00015.6364.3325.1556.5433.8337.076
GHDP-100C-535A-C318.00010.8772.4482.1837.8514.6158.491
GHDP-100C-585A-C318.00014.4263.6803.9847.8514.6158.491
GHDP-100C-535A-C418.0009.0611.8231.2618.8815.36510.614
GHDP-100C-585A-C418.00012.6103.0553.0638.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.00010.4552.1732.1698.1205.00410.159
GHDP-130C-535A-C132.00015.0544.1304.7178.1245.00710.167
GHDP-130C-585A-C132.00020.1226.1487.5258.1385.01710.196
GHDP-130C-635A-C132.00025.6648.33210.5948.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.00018.6174.8225.30910.0826.07311.701
GHDP-130C-635A-C232.00024.1587.0508.37910.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.00016.1824.0914.43610.8496.77214.134
GHDP-130C-635A-C532.00021.7246.3257.50610.8756.79214.189
GHDP-130C-685A-C532.00027.6368.66610.78110.8596.78014.156
GHDP-130C-735A-C532.00033.99711.16714.30410.8426.76714.121
GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.00024.6166.1046.54114.5818.82117.175
GHDP-130C-735A-C632.00030.9778.68810.06414.5638.80817.139

Número do modelo
Torque máximo Nm
4 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.000





GHDP-085S-335A-C29.0002.4691.1691.5072.3361.1231.475
GHDP-085S-385A-C29.0003.7791.9972.9392.3261.1161.464
GHDP-085S-435A-C29.0005.2772.9334.5762.3211.1131.459
GHDP-085S-335A-C39.000





GHDP-085S-385A-C39.0002.8881.1411.1733.7881.8052.345
GHDP-085S-435A-C39.0004.3862.1222.8103.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.0002.5327967844.1102.0102.698
GHDP-085S-435A-C59.0004.0291.8942.4214.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.0003.4781.3261.3205.0162.4353.238
GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.0004.7461.1651.1276.3362.7793.252
GHDP-100S-485A-C118.0006.7272.8893.2936.3112.7623.225
GHDP-100S-535A-C118.0008.9554.3295.7286.3152.7643.228
GHDP-100S-585A-C118.00011.4105.8828.4116.3272.7733.242
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.000





GHDP-100S-485A-C218.0005.4821.9481.9327.4383.4924.456
GHDP-100S-535A-C218.0007.7103.5314.3677.4413.4954.460
GHDP-100S-585A-C218.00010.1655.0977.0507.4543.5034.474
GHDP-100S-535A-C318.0007.0102.8742.8639.1394.3865.400
GHDP-100S-585A-C318.0009.2974.1935.0799.1394.3865.400
GHDP-100S-535A-C418.0005.8402.1991.72910.3635.1516.750
GHDP-100S-585A-C418.0008.1273.5183.94510.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.0006.6582.7252.9239.4624.6916.403
GHDP-130S-535A-C132.0009.5874.6326.1259.4664.6946.407
GHDP-130S-585A-C132.00012.8156.6729.6539.4834.7056.426
GHDP-130S-635A-C132.00016.3448.88413.5119.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.0008.6283.3693.41611.7085.6157.356
GHDP-130S-585A-C232.00011.8565.5116.94411.7255.6267.374
GHDP-130S-635A-C232.00015.3857.75710.80211.7575.6467.409
GHDP-130S-685A-C232.00019.15110.12614.91811.7385.6347.388
GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.0007.0772.3222.29312.6386.3778.889
GHDP-130S-585A-C532.00010.3054.7145.82112.6556.3888.908
GHDP-130S-635A-C532.00013.8356.9649.67912.6866.4088.942
GHDP-130S-685A-C532.00017.6009.33313.79512.6686.3968.922
GHDP-130S-735A-C532.00021.65111.86818.22312.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.00011.9114.5124.49016.9828.20410.845
GHDP-130S-685A-C632.00015.6777.0828.60616.9638.19210.824
GHDP-130S-735A-C632.00019.7289.67713.03416.9438.17910.802

Número do modelo
Torque máximo Nm
4,5 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.000





GHDP-085C-335A-C29.0004.7431.3211.5892.0821.2462.406
GHDP-085C-385A-C29.0006.9252.0782.6962.0821.2462.406
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.0005.8111.4401.4943.4272.0123.709
GHDP-085C-435A-C39.0008.2952.3022.7553.4272.0123.709
GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.0007.8672.1542.5373.6702.1904.210
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.0006.9971.6311.5414.7832.8175.227
GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.0009.0532.0401.8135.6273.1695.189
GHDP-100C-485A-C118.00012.3323.1783.4785.6273.1695.189
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.00010.7192.6252.6596.5433.8337.076
GHDP-100C-535A-C218.00014.3553.8874.5046.5433.8337.076
GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.00013.1443.2353.3347.8514.6158.491
GHDP-100C-585A-C318.00017.1374.6205.3607.8514.6158.491
GHDP-100C-535A-C418.00011.3292.6102.4128.8815.36510.614
GHDP-100C-585A-C418.00015.3213.9954.4398.8815.36510.614
GHDP-130C-435A-C132.000





GHDP-130C-485A-C132.000





GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.000





GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Número do modelo
Maximales Drehmoment Nm
4,5 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0001.7367157192.3571.1361.498
GHDP-085S-335A-C29.0003.0571.4771.9992.3361.1231.475
GHDP-085S-385A-C29.0004.4632.2883.3622.3261.1161.464
GHDP-085S-435A-C29.0006.0643.2124.9142.3211.1131.459
GHDP-085S-335A-C39.0002.3398395533.7971.8112.356
GHDP-085S-385A-C39.0003.7451.6501.9163.7881.8052.345
GHDP-085S-435A-C39.0005.3462.5743.4683.7821.8012.340
GHDP-085S-335A-C59.000





GHDP-085S-385A-C59.0003.4681.4911.6484.1102.0102.698
GHDP-085S-435A-C59.0005.0702.4153.2004.1052.0072.692
GHDP-085S-385A-C69.000





GHDP-085S-435A-C69.0006.9382.5293.1815.0162.4353.238
GHDP-100S-385A-C118.000





GHDP-100S-435A-C118.0005.8342.3912.3796.3362.7793.252
GHDP-100S-485A-C118.0007.9483.6104.4276.3112.7623.225
GHDP-100S-535A-C118.00010.2914.9626.6986.3152.7643.228
GHDP-100S-585A-C118.00012.8646.4469.1926.3152.7643.228
GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0004.7941.7911.3717.4633.5084.483
GHDP-100S-485A-C218.0006.9083.0103.4197.4383.4924.456
GHDP-100S-535A-C218.0009.2514.3625.6907.4413.4954.460
GHDP-100S-585A-C218.00011.8245.8468.1847.4543.5034.474
GHDP-100S-535A-C318.0008.4713.7174.2799.1394.3865.400
GHDP-100S-585A-C318.00011.0445.2016.7739.1394.3865.400
GHDP-100S-535A-C418.0007.3013.0423.14510.3635.1516.750
GHDP-100S-585A-C418.0009.8744.5265.63910.3635.1516.750
GHDP-130S-435A-C132.000





GHDP-130S-485A-C132.000





GHDP-130S-535A-C132.000





GHDP-130S-585A-C132.000





GHDP-130S-635A-C132.000





GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.000





GHDP-130S-535A-C232.000





GHDP-130S-585A-C232.000





GHDP-130S-635A-C232.000





GHDP-130S-685A-C232.000





GHDP-130S-485A-C532.000





GHDP-130S-535A-C532.000





GHDP-130S-585A-C532.000





GHDP-130S-635A-C532.000





GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.000





GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000








Número do modelo
Torque máximo Nm
5 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0003.0937067222.0261.2242.378
GHDP-085C-335A-C29.0005.4921.6762.0512.0081.2112.340
GHDP-085C-385A-C29.0008.0672.6893.4772.0001.2052.324
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.0006.6681.8052.0443.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.0006.1081.5771.7333.5302.1544.281
GHDP-085C-435A-C59.0009.0492.7543.3633.5262.1514.272
GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.0008.1832.1942.4694.3102.6175.137
GHDP-100C-385A-C118.0007.3041.4339255.6273.1695.189
GHDP-100C-435A-C118.00010.6922.4722.5455.4743.1105.160
GHDP-100C-485A-C118.00014.6134.3754.7075.4633.1515.122
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.0008.9382.0071.7556.5433.8337.076
GHDP-100C-485A-C218.00012.6363.2833.6226.4033.8017.070
GHDP-100C-535A-C218.00016.6224.6745.6556.5433.8337.076
GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.00015.4124.0224.4857.8514.6158.491
GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.00013.5963.3973.5638.8815.36510.614
GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00010.6242.2652.2638.1485.02410.216
GHDP-130C-485A-C132.00015.7504.4095.1028.1205.00410.159
GHDP-130C-535A-C132.00021.4966.6918.2868.1245.00710.167
GHDP-130C-585A-C132.00027.8259.18011.7928.1385.01710.196
GHDP-130C-635A-C132.00034.74011.89215.6228.1655.03710.251
GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00014.2442.8942.88710.0646.05911.664
GHDP-130C-535A-C232.00019.9915.3816.07010.0686.06211.672
GHDP-130C-585A-C232.00026.3207.9089.57610.0826.07311.701
GHDP-130C-635A-C232.00033.23410.63713.40710.1096.09211.756
GHDP-130C-485A-C532.000





GHDP-130C-535A-C532.00017.5564.6525.19710.8346.76114.105
GHDP-130C-585A-C532.00023.8857.1838.70310.8496.77214.134
GHDP-130C-635A-C532.00030.8009.91112.53410.8756.79214.189
GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.00020.8654.4664.46314.5708.81317.153
GHDP-130C-635A-C632.00027.7807.4008.29314.5968.83317.207
GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Número do modelo
Torque máximo Nm
5 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0001.9708459612.3571.1361.498
GHDP-085S-335A-C29.0003.4981.8202.6312.3361.1231.475
GHDP-085S-385A-C29.0005.1372.8464.4232.3261.1161.464
GHDP-085S-435A-C29.0007.0104.0146.4712.3211.1131.459
GHDP-085S-335A-C39.0002.8261.1201.0253.7971.8112.356
GHDP-085S-385A-C39.0004.2462.0332.6583.7881.8052.345
GHDP-085S-435A-C39.0006.1203.2164.7053.7821.8012.340
GHDP-085S-335A-C59.0002.2504964764.1202.0162.708
GHDP-085S-385A-C59.0003.8901.8052.2684.1102.0102.698
GHDP-085S-435A-C59.0005.7632.9924.3164.1052.0072.692
GHDP-085S-385A-C69.0003.3381.1781.1675.0212.4383.243
GHDP-085S-435A-C69.0005.2112.4793.2155.0162.4353.238
GHDP-100S-385A-C118.0004.5809889466.3422.7833.259
GHDP-100S-435A-C118.0006.8092.9443.3826.3362.7793.252
GHDP-100S-485A-C118.0009.2924.5446.0966.3112.7623.225
GHDP-100S-535A-C118.00012.0766.3019.1396.3152.7643.228
GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0005.5642.0352.0217.4633.5084.483
GHDP-100S-485A-C218.0008.0473.7484.7357.4383.4924.456
GHDP-100S-535A-C218.00010.8315.5177.7787.4413.4954.460
GHDP-100S-585A-C218.00013.8967.44311.1297.4543.5034.474
GHDP-100S-535A-C318.0009.9324.5605.6959.1394.3865.400
GHDP-100S-585A-C318.00012.7916.2098.4669.1394.3865.400
GHDP-100S-535A-C418.0008.7623.8854.56110.3635.1516.750
GHDP-100S-585A-C418.00011.6215.5347.33210.3635.1516.750
GHDP-130S-435A-C132.0006.7662.7993.0419.4954.7126.439
GHDP-130S-485A-C132.00010.0304.9146.6099.4624.6916.403
GHDP-130S-535A-C132.00013.6907.22210.6109.4664.6946.407
GHDP-130S-585A-C132.00017.7219.74415.0169.4834.7056.426
GHDP-130S-635A-C132.00022.12512.49219.8299.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.000





GHDP-130S-485A-C232.0009.0713.6793.90011.7045.6127.351
GHDP-130S-535A-C232.00012.7316.0727.90111.7085.6157.356
GHDP-130S-585A-C232.00016.7628.62612.30711.7255.6267.374
GHDP-130S-635A-C232.00021.16611.38917.12011.7575.6467.409
GHDP-130S-685A-C232.00025.87714.33422.27111.7385.6347.388
GHDP-130S-485A-C532.0007.5212.7932.77712.6336.3748.884
GHDP-130S-535A-C532.00011.1805.2776.77812.6386.3778.889
GHDP-130S-585A-C532.00015.2117.83211.18412.6556.3888.908
GHDP-130S-635A-C532.00019.61510.59515.99712.6866.4088.942
GHDP-130S-685A-C532.00024.32713.53921.14712.6686.3968.922
GHDP-130S-735A-C532.00029.39516.70026.68812.6476.3838.899
GHDP-130S-535A-C632.000





GHDP-130S-585A-C632.00013.2885.5055.99416.9508.18410.810
GHDP-130S-635A-C632.00017.6918.37910.80816.9828.20410.845
GHDP-130S-685A-C632.00022.40311.37015.95816.9638.19210.824
GHDP-130S-735A-C632.00027.47214.55721.49816.9438.17910.802



Número do modelo
Torque máximo Nm
5,5 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0003.6579421.0342.0261.2242.378
GHDP-085C-335A-C29.0006.2991.9952.4982.0081.2112.340
GHDP-085C-385A-C29.0009.1333.1074.0672.0001.2052.324
GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0004.9011.0641.0653.2661.9593.738
GHDP-085C-385A-C39.0007.7342.2322.6343.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.0007.1752.0082.3243.5302.1544.281
GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.0006.3091.4121.4304.3152.6205.146
GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.0008.4781.8411.5215.6273.1695.189
GHDP-100C-435A-C118.00012.3123.1513.4435.4743.1105.160
GHDP-100C-485A-C118.00016.0594.4725.3705.6273.1695.189
GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.00010.3572.3262.3606.4243.8177.114
GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.00015.8634.1834.7148.8815.36510.614
GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00012.7543.1943.4438.1485.02410.216
GHDP-130C-485A-C132.00018.3975.4656.5698.1205.00410.159
GHDP-130C-535A-C132.00024.7187.95910.0708.1245.00710.167
GHDP-130C-585A-C132.00031.67710.69113.9258.1385.01710.196
GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00016.8914.1094.35410.0646.05911.664
GHDP-130C-535A-C232.00023.2126.6737.85510.0686.06211.672
GHDP-130C-585A-C232.00030.1719.43111.71010.0826.07311.701
GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00014.4573.3673.48010.8306.75814.097
GHDP-130C-535A-C532.00020.7775.9486.98210.8346.76114.105
GHDP-130C-585A-C532.00027.7378.70510.83710.8496.77214.134
GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.00024.7176.1456.59614.5708.81317.153
GHDP-130C-635A-C632.00032.3189.22410.80714.5968.83317.207
GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Número do modelo
Torque máximo Nm
5,5 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0002.3291.0791.3542.3571.1361.498
GHDP-085S-335A-C29.0004.0122.1423.1932.3361.1231.475
GHDP-085S-385A-C29.0005.8163.2705.1662.3261.1161.464
GHDP-085S-435A-C29.0007.8774.5547.4182.3211.1131.459
GHDP-085S-335A-C39.0003.1211.3011.4283.7971.8112.356
GHDP-085S-385A-C39.0004.9252.4643.4003.7881.8052.345
GHDP-085S-435A-C39.0006.9863.7605.6533.7821.8012.340
GHDP-085S-335A-C59.0002.7641.0431.0384.1202.0162.708
GHDP-085S-385A-C59.0004.5692.2383.0104.1102.0102.698
GHDP-085S-435A-C59.0006.6303.5365.2634.1052.0072.692
GHDP-085S-385A-C69.0004.0171.7031.9105.0212.4383.243
GHDP-085S-435A-C69.0006.0783.0304.1625.0162.4353.238
GHDP-100S-385A-C118.0005.3881.8481.8296.3422.7833.259
GHDP-100S-435A-C118.0007.8413.6164.5106.3362.7793.252
GHDP-100S-485A-C118.00010.5745.3557.4986.3112.7623.225
GHDP-100S-535A-C118.00013.6367.28010.8446.3152.7643.228
GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.000





GHDP-100S-435A-C218.0006.5962.8023.1497.4633.5084.483
GHDP-100S-485A-C218.0009.3294.5676.1377.4383.4924.456
GHDP-100S-535A-C218.00012.3916.4999.4847.4413.4954.460
GHDP-100S-585A-C218.00015.3187.86211.5717.4413.4954.460
GHDP-100S-535A-C318.00011.3935.4037.1119.1394.3865.400
GHDP-100S-585A-C318.00014.5387.21710.1599.1394.3865.400
GHDP-100S-535A-C418.00010.2234.7285.97710.3635.1516.750
GHDP-100S-585A-C418.00013.3686.5429.02510.3635.1516.750
GHDP-130S-435A-C132.0008.1223.6934.5249.4954.7126.439
GHDP-130S-485A-C132.00011.7165.9818.4529.4624.6916.403
GHDP-130S-535A-C132.00015.7428.50712.8529.4664.6946.407
GHDP-130S-585A-C132.00020.17411.27517.6979.4834.7056.426
GHDP-130S-635A-C132.00025.01514.29322.9889.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.0007.1631.8671.81511.7375.6347.387
GHDP-130S-485A-C232.00010.7574.8005.74311.7045.6127.351
GHDP-130S-535A-C232.00014.7837.37610.14311.7085.6157.356
GHDP-130S-585A-C232.00019.21510.16614.98811.7255.6267.374
GHDP-130S-635A-C232.00024.05613.19620.28011.7575.6467.409
GHDP-130S-685A-C232.00029.24116.43225.94711.7385.6347.388
GHDP-130S-485A-C532.0009.2073.9984.62012.6336.3748.884
GHDP-130S-535A-C532.00013.2326.5839.02012.6386.3778.889
GHDP-130S-585A-C532.00017.6649.37313.86512.6556.3888.908
GHDP-130S-635A-C532.00022.50512.40219.15612.6866.4088.942
GHDP-130S-685A-C532.00027.69015.63724.82412.6686.3968.922
GHDP-130S-735A-C532.00033.26819.11130.92012.6476.3838.899
GHDP-130S-535A-C632.00011.3083.8713.83116.9338.17310.792
GHDP-130S-585A-C632.00015.7417.1238.67616.9508.18410.810
GHDP-130S-635A-C632.00020.58210.21913.96716.9828.20410.845
GHDP-130S-685A-C632.00025.76613.48719.63416.9638.19210.824
GHDP-130S-735A-C632.00031.34416.98225.73116.9438.17910.802


Número do modelo
Torque máximo Nm
6 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0004.2211.1711.3472.0261.2242.378
GHDP-085C-335A-C29.0007.1072.3122.9452.0081.2112.340
GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0005.7081.4121.5123.2661.9593.738
GHDP-085C-385A-C39.0008.8012.6563.2253.2581.9533.722
GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.0005.1481.1751.2023.5382.1604.298
GHDP-085C-385A-C59.0008.2412.4342.9153.5302.1544.281
GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.0007.3751.8642.0214.3152.6205.146
GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.0009.7302.0162.0125.4793.1145.171
GHDP-100C-435A-C118.00013.9323.8094.3405.4743.1105.160
GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.0008.0381.6951.2986.5433.8337.076
GHDP-100C-435A-C218.00011.9773.0133.2576.4243.8177.114
GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00014.8844.0614.6238.1485.02410.216
GHDP-130C-485A-C132.00021.0446.5128.0358.1205.00410.159
GHDP-130C-535A-C132.00027.9399.22511.8548.1245.00710.167
GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.000





GHDP-130C-485A-C232.00019.5395.1985.82010.0646.05911.664
GHDP-130C-535A-C232.00026.4337.9539.63910.0686.06211.672
GHDP-130C-585A-C232.00034.02310.94713.84310.0826.07311.701
GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00017.1044.4694.94710.8306.75814.097
GHDP-130C-535A-C532.00023.9997.2288.76610.8346.76114.105
GHDP-130C-585A-C532.00031.58810.22112.97010.8496.77214.134
GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.00020.9794.5284.52614.5568.80317.123
GHDP-130C-585A-C632.00028.5687.7198.73014.5708.81317.153
GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Número do modelo
Torque máximo Nm
6 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0002.6881.3081.7462.3571.1361.498
GHDP-085S-335A-C29.0004.5262.4643.7552.3361.1231.475
GHDP-085S-385A-C29.0006.4953.6935.9082.3261.1161.464
GHDP-085S-435A-C29.0008.7445.0938.3662.3211.1131.459
GHDP-085S-335A-C39.0003.6351.6401.9903.7971.8112.356
GHDP-085S-385A-C39.0005.6052.8934.1423.7881.8052.345
GHDP-085S-435A-C39.0007.8534.3026.6003.7821.8012.340
GHDP-085S-335A-C59.0003.2781.4061.6004.1202.0162.708
GHDP-085S-385A-C59.0005.2482.6683.7534.1102.0102.698
GHDP-085S-435A-C59.0007.4974.0796.2114.1052.0072.692
GHDP-085S-385A-C69.0004.6962.1482.6525.0212.4383.243
GHDP-085S-435A-C69.0006.9453.5775.1105.0162.4353.238
GHDP-100S-385A-C118.0006.1962.5332.7136.3422.7833.259
GHDP-100S-435A-C118.0008.8724.2775.6386.3362.7793.252
GHDP-100S-485A-C118.00011.8576.1638.8996.3112.7623.225
GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0004.9511.3831.3527.4693.5124.490
GHDP-100S-435A-C218.0007.6273.4784.2777.4633.5084.483
GHDP-100S-485A-C218.00010.6125.3797.5397.4383.4924.456
GHDP-100S-535A-C218.00013.9517.47711.1897.4413.4954.460
GHDP-100S-585A-C218.00017.0658.87013.2647.4413.4954.460
GHDP-100S-535A-C318.00012.8546.2468.5289.1394.3865.400
GHDP-100S-585A-C318.00016.2858.22511.8539.1394.3865.400
GHDP-100S-535A-C418.00011.6845.5717.39410.3635.1516.750
GHDP-100S-585A-C418.00015.1157.55010.71910.3635.1516.750
GHDP-130S-435A-C132.0009.4784.5636.0069.4954.7126.439
GHDP-130S-485A-C132.00013.4027.04110.2959.4624.6916.403
GHDP-130S-535A-C132.00017.7939.79015.0959.4664.6946.407
GHDP-130S-585A-C132.00022.62712.80520.3789.4834.7056.426
GHDP-130S-635A-C132.00027.90516.09326.1489.5154.7256.460
GHDP-130S-385A-C232.000





GHDP-130S-435A-C232.0008.5203.2923.29711.7375.6347.387
GHDP-130S-485A-C232.00012.4435.8887.58611.7045.6127.351
GHDP-130S-535A-C232.00016.8348.67112.38611.7085.6157.356
GHDP-130S-585A-C232.00021.66811.70317.66911.7255.6267.374
GHDP-130S-635A-C232.00026.94615.00123.43911.7575.6467.409
GHDP-130S-685A-C232.00032.60418.52929.62311.7385.6347.388
GHDP-130S-485A-C532.00010.8935.0936.46312.6336.3748.884
GHDP-130S-535A-C532.00015.2847.87811.26312.6386.3778.889
GHDP-130S-585A-C532.00020.11710.90916.54612.6556.3888.908
GHDP-130S-635A-C532.00025.39514.20522.31512.6866.4088.942
GHDP-130S-685A-C532.00031.05317.73228.50012.6686.3968.922
GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00013.3605.5546.07316.9338.17310.792
GHDP-130S-585A-C632.00018.1948.70111.35716.9508.18410.810
GHDP-130S-635A-C632.00023.47212.04417.12616.9828.20410.845
GHDP-130S-685A-C632.00029.13015.59623.31116.9638.19210.824
GHDP-130S-735A-C632.000








Número do modelo
Torque máximo Nm
7 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0005.3491.6201.9712.0261.2242.378
GHDP-085C-335A-C29.0008.7212.9463.8392.0081.2112.340
GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.0007.3232.0682.4063.2661.9593.738
GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.0006.7631.8432.0963.5382.1604.298
GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.00012.2683.1323.4185.4793.1145.171
GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.00010.3132.3062.3356.4293.8217.125
GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00019.1435.7606.9828.1485.02410.216
GHDP-130C-485A-C132.00026.3398.59710.9688.1205.00410.159
GHDP-130C-535A-C132.00034.38111.75115.4238.1245.00710.167
GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.000





GHDP-130C-435A-C232.00017.6374.4204.76710.0926.08011.721
GHDP-130C-485A-C232.00024.8337.3188.75310.0646.05911.664
GHDP-130C-535A-C232.00032.87610.49613.20810.0686.06211.672
GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00022.3996.5937.88010.8306.75814.097
GHDP-130C-535A-C532.00030.4419.77012.33510.8346.76114.105
GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.00027.4217.2548.09514.5568.80317.123
GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Número do modelo
Torque máximo Nm
7 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0003.4061.7622.5312.3571.1361.498
GHDP-085S-335A-C29.0005.5543.1064.8792.3361.1231.475
GHDP-085S-385A-C29.0007.8544.5397.3922.3261.1161.464
GHDP-085S-435A-C29.000





GHDP-085S-335A-C39.0004.6632.2983.1143.7971.8112.356
GHDP-085S-385A-C39.0006.9633.7455.6273.7881.8052.345
GHDP-085S-435A-C39.0009.5875.3848.4963.7821.8012.340
GHDP-085S-335A-C59.0004.3072.0722.7244.1202.0162.708
GHDP-085S-385A-C59.0006.6063.5215.2374.1102.0102.698
GHDP-085S-435A-C59.0009.2305.1628.1064.1052.0072.692
GHDP-085S-385A-C69.0006.0553.0154.1365.0212.4383.243
GHDP-085S-435A-C69.0008.6794.6657.0055.0162.4353.238
GHDP-100S-385A-C118.0007.8133.5984.4796.3422.7833.259
GHDP-100S-435A-C118.00010.9365.5837.8936.3362.7793.252
GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0006.5672.7833.1187.4693.5124.490
GHDP-100S-435A-C218.0009.6904.7966.5327.4633.5084.483
GHDP-100S-485A-C218.00013.1766.99110.3427.4383.4924.456
GHDP-100S-535A-C218.00016.5578.57712.7717.4383.4924.456
GHDP-100S-585A-C218.000





GHDP-100S-535A-C318.00015.7777.93211.3609.1394.3865.400
GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.00014.6077.25710.22610.3635.1516.750
GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.00012.1916.2808.9719.4954.7126.439
GHDP-130S-485A-C132.00016.7749.15313.9819.4624.6916.403
GHDP-130S-535A-C132.00021.89612.35019.5809.4664.6946.407
GHDP-130S-585A-C132.00027.53315.86125.7409.4834.7056.426
GHDP-130S-635A-C132.00033.68519.69132.4669.5154.7256.460
GHDP-130S-385A-C232.0007.1261.8271.77411.7455.6397.396
GHDP-130S-435A-C232.00011.2325.1096.26211.7375.6347.387
GHDP-130S-485A-C232.00015.8158.02811.27211.7045.6127.351
GHDP-130S-535A-C232.00020.93711.24616.87111.7085.6157.356
GHDP-130S-585A-C232.00026.57414.76823.03211.7255.6267.374
GHDP-130S-635A-C232.00032.72618.60529.75711.7575.6467.409
GHDP-130S-685A-C232.00039.33022.71836.97511.7385.6347.388
GHDP-130S-485A-C532.00014.2657.23510.14912.6336.3748.884
GHDP-130S-535A-C532.00019.38710.45215.74812.6386.3778.889
GHDP-130S-585A-C532.00025.02313.97321.90812.6556.3888.908
GHDP-130S-635A-C532.00031.17617.80828.63412.6866.4088.942
GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00017.4638.23310.55816.9338.17310.792
GHDP-130S-585A-C632.00023.09911.80916.71916.9508.18410.810
GHDP-130S-635A-C632.00029.25215.67323.44416.9828.20410.845
GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000








Número do modelo
Torque máximo Nm
8,5 BAR ASSIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-C29.0007.0412.2872.9092.0261.2242.378
GHDP-085C-335A-C29.000





GHDP-085C-385A-C29.000





GHDP-085C-435A-C29.000





GHDP-085C-335A-C39.000





GHDP-085C-385A-C39.000





GHDP-085C-435A-C39.000





GHDP-085C-335A-C59.000





GHDP-085C-385A-C59.000





GHDP-085C-435A-C59.000





GHDP-085C-385A-C69.000





GHDP-085C-435A-C69.000





GHDP-100C-385A-C118.000





GHDP-100C-435A-C118.000





GHDP-100C-485A-C118.000





GHDP-100C-385A-C218.000





GHDP-100C-435A-C218.000





GHDP-100C-485A-C218.000





GHDP-100C-535A-C218.000





GHDP-100C-585A-C218.000





GHDP-100C-535A-C318.000





GHDP-100C-585A-C318.000





GHDP-100C-535A-C418.000





GHDP-100C-585A-C418.000





GHDP-130C-435A-C132.00025.5318.28010.5218.1485.02410.216
GHDP-130C-485A-C132.00034.28111.71215.3678.1205.00410.159
GHDP-130C-535A-C132.000





GHDP-130C-585A-C132.000





GHDP-130C-635A-C132.000





GHDP-130C-385A-C232.00016.1953.8153.96810.0996.08511.735
GHDP-130C-435A-C232.00024.0266.9978.30610.0926.08011.721
GHDP-130C-485A-C232.00032.77510.45613.15210.0646.05911.664
GHDP-130C-535A-C232.000





GHDP-130C-585A-C232.000





GHDP-130C-635A-C232.000





GHDP-130C-485A-C532.00030.3409.73012.27910.8306.75814.097
GHDP-130C-535A-C532.000





GHDP-130C-585A-C532.000





GHDP-130C-635A-C532.000





GHDP-130C-685A-C532.000





GHDP-130C-735A-C532.000





GHDP-130C-535A-C632.000





GHDP-130C-585A-C632.000





GHDP-130C-635A-C632.000





GHDP-130C-685A-C632.000





GHDP-130C-735A-C632.000






Número do modelo
Torque máximo Nm
8,5 BAR SIMÉTRICO - Normalmente fechado Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-C29.0004.4842.4383.7092.3571.1361.498
GHDP-085S-335A-C29.0007.0964.0676.5652.3361.1231.475
GHDP-085S-385A-C29.0009.8915.8079.6192.3261.1161.464
GHDP-085S-435A-C29.000





GHDP-085S-335A-C39.0006.2063.2704.7993.7971.8112.356
GHDP-085S-385A-C39.0009.0005.0187.8543.7881.8052.345
GHDP-085S-435A-C39.000





GHDP-085S-335A-C59.0005.8493.0464.4104.1202.0162.708
GHDP-085S-385A-C59.0008.6434.7957.4644.1102.0102.698
GHDP-085S-435A-C59.000





GHDP-085S-385A-C69.0008.0924.2976.3635.0212.4383.243
GHDP-085S-435A-C69.000





GHDP-100S-385A-C118.00010.2375.1427.1296.3422.7833.259
GHDP-100S-435A-C118.000





GHDP-100S-485A-C118.000





GHDP-100S-535A-C118.000





GHDP-100S-585A-C118.000





GHDP-100S-385A-C218.0008.9924.3535.7687.4693.5124.490
GHDP-100S-435A-C218.00012.7856.7469.9157.4633.5084.483
GHDP-100S-485A-C218.00016.5148.55312.7307.4633.5084.483
GHDP-100S-535A-C218.000





GHDP-100S-585A-C218.000





GHDP-100S-535A-C318.000





GHDP-100S-585A-C318.000





GHDP-100S-535A-C418.000





GHDP-100S-585A-C418.000





GHDP-130S-435A-C132.00016.2608.83113.4199.4954.7126.439
GHDP-130S-485A-C132.00021.83212.31019.5099.4624.6916.403
GHDP-130S-535A-C132.00028.05116.18426.3079.4664.6946.407
GHDP-130S-585A-C132.00034.89120.44133.7849.4834.7056.426
GHDP-130S-635A-C132.000





GHDP-130S-385A-C232.00010.3134.5105.25811.7455.6397.396
GHDP-130S-435A-C232.00015.3017.70410.71011.7375.6347.387
GHDP-130S-485A-C232.00020.87311.20616.80111.7045.6127.351
GHDP-130S-535A-C232.00027.09215.09223.59811.7085.6157.356
GHDP-130S-585A-C232.00033.93219.35631.07511.7255.6267.374
GHDP-130S-635A-C232.000





GHDP-130S-685A-C232.00049.42028.99748.00411.7385.6347.388
GHDP-130S-485A-C532.00019.32310.41215.67712.6336.3748.884
GHDP-130S-535A-C532.00025.54114.29622.47512.6386.3778.889
GHDP-130S-585A-C532.00032.38218.55929.95212.6556.3888.908
GHDP-130S-635A-C532.000





GHDP-130S-685A-C532.000





GHDP-130S-735A-C532.000





GHDP-130S-535A-C632.00023.61812.13617.28616.9338.17310.792
GHDP-130S-585A-C632.00030.45816.42924.76316.9508.18410.810
GHDP-130S-635A-C632.000





GHDP-130S-685A-C632.000





GHDP-130S-735A-C632.000







Efeito Simples Normalmente Fechado - Tabela de torques (momentos de torque)

Número do modelo
Torque máximo Nm
3 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1371.255530509
GHDP-085C-385A-O29.0003.8361.0151.1292.1071.2072.158
GHDP-085C-435A-O29.0003.8281.0121.1253.0831.9034.046
GHDP-085C-385A-O39.000





GHDP-085C-435A-O39.0006.2431.6331.8052.3071.1251.271
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.0006.7651.8392.0781.997715672
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.0008.2362.2112.4812.5991.0781.034
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.00012.2893.1503.4413.9931.2881.191
GHDP-100C-585A-O218.00012.3103.1583.4525.5972.9604.294
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.000





GHDP-130C-535A-O132.00015.5884.3254.9464.7692.2402.220
GHDP-130C-585A-O132.00015.6154.3364.9606.8793.8176.301
GHDP-130C-635A-O132.00015.6674.3564.9879.1885.48010.767
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.00019.3435.1175.6906.0472.1502.019
GHDP-130C-635A-O232.00019.3945.1375.7178.3564.4336.485
GHDP-130C-685A-O232.00019.3635.1255.70110.8086.21811.229
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.00020.8655.9446.9017.0063.5994.795
GHDP-130C-685A-O532.00020.8355.9326.8859.4595.3949.538
GHDP-130C-735A-O532.00020.8025.9196.86812.0977.28514.641
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.00027.9407.4578.33510.4255.2236.442

Número do modelo
Torque máximo Nm
3 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4741.442394384
GHDP-085S-385A-O29.0002.3251.1161.4632.4221.1391.456
GHDP-085S-435A-O29.0002.3201.1131.4583.5441.8492.682
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.000





GHDP-085S-435A-O39.0003.7821.8012.3392.653924916
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.000





GHDP-085S-435A-O59.0004.1042.0072.6922.296545526
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.0006.3152.7643.2285.8342.2812.317
GHDP-100S-585A-O118.0006.3272.7733.2427.6793.5114.333
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.0007.4413.4954.4604.589998956
GHDP-100S-585A-O218.0007.4543.5034.4746.4342.6942.972
GHDP-100S-535A-O318.000





GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.000





GHDP-130S-535A-O132.0009.4664.6946.4085.4841.6681.640
GHDP-130S-585A-O132.0009.4834.7056.4267.9093.5544.291
GHDP-130S-635A-O132.0009.5154.7256.46110.5645.2537.193
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.00011.7255.6267.3746.9501.6401.582
GHDP-130S-635A-O232.00011.7575.6467.4099.6054.0404.484
GHDP-130S-685A-O232.00011.7385.6347.38812.4255.8767.566
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.000





GHDP-130S-635A-O532.00012.6866.4088.9428.0553.2223.361
GHDP-130S-685A-O532.00012.6686.3968.92210.8745.0816.443
GHDP-130S-735A-O532.00012.6476.3838.89913.9077.0109.758
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.00016.9428.17910.80111.9844.5894.569



Número do modelo
Torque máximo Nm
3,5 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1371.7029121.374
GHDP-085C-385A-O29.0003.8361.0151.1292.6981.6303.301
GHDP-085C-435A-O29.0003.8281.0121.1253.8372.4365.504
GHDP-085C-385A-O39.0006.2511.6371.8101.922577527
GHDP-085C-435A-O39.0006.2431.6331.8053.0611.6862.730
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.0006.7651.8392.0782.7511.4582.130
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.0008.2362.2112.4813.5361.8942.847
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.00010.4602.4102.4884.7372.3152.631
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.00012.2893.1503.4415.3502.7773.816
GHDP-100C-585A-O218.00012.3103.1583.4527.2204.1427.433
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.00015.5814.3234.9424.3241.4591.359
GHDP-130C-535A-O132.00015.5884.3254.9466.5543.5805.672
GHDP-130C-585A-O132.00015.6154.3364.9609.0125.35510.427
GHDP-130C-635A-O132.00015.6674.3564.98711.7027.26415.630
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.00019.3155.1065.6765.7211.5531.390
GHDP-130C-585A-O232.00019.3435.1175.6908.1804.3036.146
GHDP-130C-635A-O232.00019.3945.1375.71710.8696.26211.348
GHDP-130C-685A-O232.00019.3635.1255.70113.7338.31116.887
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.00020.8145.9246.8756.8313.4674.455
GHDP-130C-635A-O532.00020.8655.9446.9019.5205.4399.657
GHDP-130C-685A-O532.00020.8355.9326.88512.3847.48915.197
GHDP-130C-735A-O532.00020.8025.9196.86815.4649.67221.156
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.00027.9737.4708.35310.7125.4406.997
GHDP-130C-735A-O632.00027.9407.4578.33513.7937.70812.956

Número do modelo
Torque máximo Nm
3,5 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4741.956836946
GHDP-085S-385A-O29.0002.3251.1161.4633.1011.5702.198
GHDP-085S-435A-O29.0002.3201.1131.4584.4112.3923.629
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.000





GHDP-085S-435A-O39.0003.7821.8012.3393.5191.5651.863
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.000





GHDP-085S-435A-O59.0004.1042.0072.6923.1631.3291.474
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.0006.3112.7623.2255.4451.9081.891
GHDP-100S-535A-O118.0006.3152.7643.2287.3943.3274.022
GHDP-100S-585A-O118.0006.3272.7733.2429.5444.7046.372
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.0007.4413.4954.4606.1492.5012.661
GHDP-100S-585A-O218.0007.4543.5034.4748.2993.9115.011
GHDP-100S-535A-O318.0008.7364.3865.4005.3782.0311.492
GHDP-100S-585A-O318.0008.7364.3865.4007.3173.1863.494
GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.0009.9065.1516.7506.1832.5112.324
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.0009.4624.6926.4034.9721.1241.080
GHDP-130S-535A-O132.0009.4664.6946.4087.5353.3103.882
GHDP-130S-585A-O132.0009.4834.7056.42610.3625.1256.972
GHDP-130S-635A-O132.0009.5154.7256.46113.4547.07410.352
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.00011.7255.6267.3749.4033.9054.263
GHDP-130S-635A-O232.00011.7575.6467.40912.4955.9227.643
GHDP-130S-685A-O232.00011.7385.6347.38815.7888.01111.242
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.00012.6556.3888.9087.8533.0813.140
GHDP-130S-635A-O532.00012.6866.4088.94210.9455.1266.520
GHDP-130S-685A-O532.00012.6686.3968.92214.2377.21810.119
GHDP-130S-735A-O532.00012.6476.3838.89917.7799.44513.990
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.00016.9628.19210.82312.3144.8344.930
GHDP-130S-735A-O632.00016.9428.17910.80115.8567.1988.802



Número do modelo
Torque máximo Nm
4 BAR CANTED - Normally open Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8521.0211.1372.1491.2372.239
GHDP-085C-385A-O29.0003.8361.0151.1293.2882.0484.443
GHDP-085C-435A-O29.0003.8281.0121.1254.5912.9686.962
GHDP-085C-385A-O39.0006.2511.6371.8102.5131.2811.669
GHDP-085C-435A-O39.0006.2431.6331.8053.8152.2314.188
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7731.8422.0822.2021.0441.069
GHDP-085C-435A-O59.0006.7651.8392.0783.5052.0083.589
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2702.2252.4983.0251.5141.859
GHDP-085C-485A-O69.0008.2362.2112.4814.4732.5754.660
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5012.4272.5094.1291.5391.455
GHDP-100C-485A-O118.00010.4602.4102.4885.8533.1484.788
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.2843.1483.4384.7702.3402.693
GHDP-100C-535A-O218.00012.2893.1503.4416.7073.7726.441
GHDP-100C-585A-O218.00012.3103.1583.4528.8435.30610.572
GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.00016.3174.9285.2867.1543.8596.317
GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.00015.5814.3234.9425.7913.0184.196
GHDP-130C-535A-O132.00015.5884.3254.9468.3384.8719.123
GHDP-130C-585A-O132.00015.6154.3364.96011.1466.87014.554
GHDP-130C-635A-O132.00015.6674.3564.98714.2169.04120.492
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.00019.3155.1065.6767.5063.8004.842
GHDP-130C-585A-O232.00019.3435.1175.69010.3145.86110.273
GHDP-130C-635A-O232.00019.3945.1375.71713.3838.06216.210
GHDP-130C-685A-O232.00019.3635.1255.70116.65910.38422.546
GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.00020.7875.9136.8606.1562.9533.151
GHDP-130C-585A-O532.00020.8145.9246.8758.9645.0368.582
GHDP-130C-635A-O532.00020.8655.9446.90112.0347.24014.520
GHDP-130C-685A-O532.00020.8355.9326.88515.3099.56220.855
GHDP-130C-735A-O532.00020.8025.9196.86818.83212.05127.671
GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.00028.0037.4828.36910.3625.1766.320
GHDP-130C-685A-O632.00027.9737.4708.35313.6377.59512.656
GHDP-130C-735A-O632.00027.9407.4578.33517.16110.13519.471

Número do modelo
Torque máximo Nm
4 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.000





GHDP-085S-335A-O29.0002.3351.1221.4742.4701.1701.508
GHDP-085S-385A-O29.0002.3251.1161.4633.7801.9972.940
GHDP-085S-435A-O29.0002.3201.1131.4585.2782.9344.577
GHDP-085S-335A-O39.000





GHDP-085S-385A-O39.0003.7871.8042.3452.8891.1421.174
GHDP-085S-435A-O39.0003.7821.8012.3394.3862.1222.811
GHDP-085S-335A-O59.000





GHDP-085S-385A-O59.0004.1102.0102.6972.532796784
GHDP-085S-435A-O59.0004.1042.0072.6924.0301.8952.421
GHDP-085S-385A-O69.000





GHDP-085S-435A-O69.0005.0152.4343.2373.4791.3271.321
GHDP-100S-385A-O118.000





GHDP-100S-435A-O118.0006.3362.7793.2524.7461.1651.127
GHDP-100S-485A-O118.0006.3112.7623.2256.7272.8893.293
GHDP-100S-535A-O118.0006.3152.7643.2288.9554.3295.728
GHDP-100S-585A-O118.0006.3272.7733.24211.4105.8828.411
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.000





GHDP-100S-485A-O218.0007.4383.4924.4565.4821.9481.932
GHDP-100S-535A-O218.0007.4413.4954.4607.7103.5314.367
GHDP-100S-585A-O218.0007.4543.5034.47410.1655.0977.050
GHDP-100S-535A-O318.0008.7364.3865.4006.7942.8742.954
GHDP-100S-585A-O318.0008.7364.3865.4009.0114.1935.241
GHDP-100S-535A-O418.0009.9065.1516.7505.6602.1991.784
GHDP-100S-585A-O418.0009.9065.1516.7507.8773.5184.071
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.0009.4624.6926.4036.6582.7252.923
GHDP-130S-535A-O132.0009.4664.6946.4089.5874.6326.125
GHDP-130S-585A-O132.0009.4834.7056.42612.8156.6729.653
GHDP-130S-635A-O132.0009.5154.7256.46116.3448.88413.511
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.00011.7085.6157.3568.6283.3703.416
GHDP-130S-585A-O232.00011.7255.6267.37411.8565.5126.945
GHDP-130S-635A-O232.00011.7575.6467.40915.3867.75810.802
GHDP-130S-685A-O232.00011.7385.6347.38819.15110.12714.918
GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.00012.6386.3778.8897.0772.3222.293
GHDP-130S-585A-O532.00012.6556.3888.90810.3054.7145.821
GHDP-130S-635A-O532.00012.6866.4088.94213.8356.9649.679
GHDP-130S-685A-O532.00012.6686.3968.92217.6009.33313.795
GHDP-130S-735A-O532.00012.6476.3838.89921.65111.86818.223
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.00016.9818.20410.84411.9124.5124.490
GHDP-130S-685A-O632.00016.9628.19210.82315.6777.0828.606
GHDP-130S-735A-O632.00016.9428.17910.80119.7289.67813.034


Número do modelo
Torque máximo Nm
4,5 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.000





GHDP-085C-335A-O29.0003.8871.0351.1552.4791.5132890
GHDP-085C-385A-O29.0003.8521.0211.1373.6192.3244904
GHDP-085C-435A-O29.0003.8361.0151.1294.9173.2487197
GHDP-085C-385A-O39.0003.8281.0121.1253.0361.7172716
GHDP-085C-435A-O39.0006.2511.6371.8104.3352.6405010
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7891.8482.0902.8121.5582321
GHDP-085C-435A-O59.0006.7731.8422.0824.1112.4814614
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2782.2282.5033.6561.9842803
GHDP-085C-485A-O69.0008.2702.2252.4985.1133.0205376
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5112.4312.5145.1362.6463572
GHDP-100C-485A-O118.00010.5012.4272.5096.9973.9306852
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.3243.1643.4596.0813.2985238
GHDP-100C-535A-O218.00012.3243.1643.4598.1444.7228874
GHDP-100C-585A-O218.00012.3243.1643.45910.4096.28512866
GHDP-100C-535A-O318.00014.3904.1724.2287.4574.0686850
GHDP-100C-585A-O318.00014.3904.1724.2289.7225.63210843
GHDP-100C-535A-O418.00016.3174.9285.2866.4273.3575.035
GHDP-100C-585A-O418.00016.3174.9285.2868.6924.9219.027
GHDP-130C-435A-O132.000





GHDP-130C-485A-O132.000





GHDP-130C-535A-O132.000





GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.000





GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.000





GHDP-130C-535A-O532.000





GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.000





GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Número do modelo
Torque máximo Nm
4,5 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4971.682715741
GHDP-085S-335A-O29.0002.3351.1221.4742.9631.4772062
GHDP-085S-385A-O29.0002.3251.1161.4634.3262.2883468
GHDP-085S-435A-O29.0002.3201.1131.4585.8773.2125070
GHDP-085S-335A-O39.0003.7971.8102.3552.267839571
GHDP-085S-385A-O39.0003.7871.8042.3453.6291.6501977
GHDP-085S-435A-O39.0003.7821.8012.3395.1812.5743578
GHDP-085S-335A-O59.0004.1192.0162.7081.999680294
GHDP-085S-385A-O59.0004.1102.0102.6973.3621.4911700
GHDP-085S-435A-O59.0004.1042.0072.6924.9142.4153302
GHDP-085S-385A-O69.0005.0212.4383.2432.819973466
GHDP-085S-435A-O69.0005.0152.4343.2374.3711.8972067
GHDP-100S-385A-O118.0006.3422.7833.2593.8291.304570
GHDP-100S-435A-O118.0006.3362.7793.2525.6552.3912454
GHDP-100S-485A-O118.0006.3112.7623.2257.7033.6104568
GHDP-100S-535A-O118.0006.3152.7643.2289.9744.9626911
GHDP-100S-585A-O118.0006.3152.7643.22812.4686.4469484
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4834.6471.7911414
GHDP-100S-485A-O218.0007.4383.4924.4566.6953.0103528
GHDP-100S-535A-O218.0007.4413.4954.4608.9664.3625871
GHDP-100S-585A-O218.0007.4543.5034.47411.4605.8468444
GHDP-100S-535A-O318.0008.7364.3865.4008.2103.7174415
GHDP-100S-585A-O318.0008.7364.3865.40010.7045.2016988
GHDP-100S-535A-O418.0009.9065.1516.7507.0763.0423.245
GHDP-100S-585A-O418.0009.9065.1516.7509.5704.5265.818
GHDP-130S-435A-O132.000





GHDP-130S-485A-O132.000





GHDP-130S-535A-O132.000





GHDP-130S-585A-O132.000





GHDP-130S-635A-O132.000





GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.000





GHDP-130S-535A-O232.000





GHDP-130S-585A-O232.000





GHDP-130S-635A-O232.000





GHDP-130S-685A-O232.000





GHDP-130S-485A-O532.000





GHDP-130S-535A-O532.000





GHDP-130S-585A-O532.000





GHDP-130S-635A-O532.000





GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.000





GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000








Número do modelo
Torque máximo Nm
5 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1551.7149211.399
GHDP-085C-335A-O29.0003.8521.0211.1373.0431.8753.969
GHDP-085C-385A-O29.0003.8361.0151.1294.4692.8836.728
GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8103.6942.1443.954
GHDP-085C-435A-O39.0006.2431.6331.8055.3233.3047.105
GHDP-085C-335A-O59.000





GHDP-085C-385A-O59.0006.7731.8422.0823.3841.9203.354
GHDP-085C-435A-O59.0006.7651.8392.0785.0133.0846.505
GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.0008.2702.2252.4984.5332.6184.776
GHDP-085C-485A-O69.0008.2362.2112.4816.3483.9128.286
GHDP-100C-385A-O118.000





GHDP-100C-435A-O118.00010.5012.4272.5095.9243.2014.926
GHDP-100C-485A-O118.00010.4602.4102.4888.0834.7639.103
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.00012.2843.1483.4387.0003.9847.008
GHDP-100C-535A-O218.00012.2893.1503.4419.4225.71711.692
GHDP-100C-585A-O218.00012.3103.1583.45211.9477.34715.577
GHDP-100C-535A-O318.00014.3904.1724.2288.7444.9569.118
GHDP-100C-585A-O318.00014.3904.1724.22811.2606.69313.554
GHDP-100C-535A-O418.00016.3174.9285.2867.7144.2457.302
GHDP-100C-585A-O418.00016.3174.9285.28610.2305.98211.738
GHDP-130C-435A-O132.00015.6344.3434.9705.8843.0884.377
GHDP-130C-485A-O132.00015.5814.3234.9428.7245.1489.869
GHDP-130C-535A-O132.00015.5884.3254.94611.9077.40916.027
GHDP-130C-585A-O132.00015.6154.3364.96015.4139.88522.808
GHDP-130C-635A-O132.00015.6674.3564.98719.24312.58530.217
GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.000





GHDP-130C-485A-O232.00019.3085.1035.6727.8914.0895.587
GHDP-130C-535A-O232.00019.3155.1065.67611.0756.41011.745
GHDP-130C-585A-O232.00019.3435.1175.69014.5818.91218.526
GHDP-130C-635A-O232.00019.3945.1375.71718.41111.62325.936
GHDP-130C-685A-O232.00019.3635.1255.70122.50914.51533.863
GHDP-130C-485A-O532.00020.7805.9116.8576.5423.2493.897
GHDP-130C-535A-O532.00020.7875.9136.8609.7255.58610.054
GHDP-130C-585A-O532.00020.8145.9246.87513.2318.09116.836
GHDP-130C-635A-O532.00020.8655.9446.90117.06110.80124.245
GHDP-130C-685A-O532.00020.8355.9326.88521.16013.69232.172
GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.3288.0532.0911.854
GHDP-130C-585A-O632.00027.9527.4628.34211.5596.0728.636
GHDP-130C-635A-O632.00028.0037.4828.36915.3908.86216.045
GHDP-130C-685A-O632.00027.9737.4708.35319.48811.79423.972
GHDP-130C-735A-O632.00027.9407.4578.33523.89614.91932.500

Número do modelo
Torque máximo Nm
5 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4971.971845962
GHDP-085S-335A-O29.0002.3351.1221.4743.4991.8202.632
GHDP-085S-385A-O29.0002.3251.1161.4635.1382.8474.425
GHDP-085S-435A-O29.0002.3201.1131.4587.0114.0146.472
GHDP-085S-335A-O39.0003.7971.8102.3552.607876866
GHDP-085S-385A-O39.0003.7871.8042.3454.2472.0332.659
GHDP-085S-435A-O39.0003.7821.8012.3396.1203.2174.706
GHDP-085S-335A-O59.0004.1192.0162.7082.251497477
GHDP-085S-385A-O59.0004.1102.0102.6973.8901.8052.269
GHDP-085S-435A-O59.0004.1042.0072.6925.7642.9934.316
GHDP-085S-385A-O69.0005.0212.4383.2433.3391.1781.168
GHDP-085S-435A-O69.0005.0152.4343.2375.2122.4793.216
GHDP-100S-385A-O118.0006.3422.7833.2594.580988946
GHDP-100S-435A-O118.0006.3362.7793.2526.8092.9443.382
GHDP-100S-485A-O118.0006.3112.7623.2259.2924.5446.096
GHDP-100S-535A-O118.0006.3152.7643.22812.0766.3019.139
GHDP-100S-585A-O118.0006.3152.7643.22814.1617.45411.231
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4835.5642.0352.021
GHDP-100S-485A-O218.0007.4383.4924.4568.0473.7484.735
GHDP-100S-535A-O218.0007.4413.4954.46010.8315.5177.778
GHDP-100S-585A-O218.0007.4543.5034.47413.8967.44311.129
GHDP-100S-535A-O318.0008.7364.3865.4009.6264.5605.876
GHDP-100S-585A-O318.0008.7364.3865.40012.3976.2098.735
GHDP-100S-535A-O418.0009.9065.1516.7508.4923.8854.706
GHDP-100S-585A-O418.0009.9065.1516.75011.2635.5347.565
GHDP-130S-435A-O132.0009.4954.7126.4396.7662.7983.041
GHDP-130S-485A-O132.0009.4624.6926.40310.0304.9146.609
GHDP-130S-535A-O132.0009.4664.6946.40813.6907.22210.610
GHDP-130S-585A-O132.0009.4834.7056.42617.7219.74415.015
GHDP-130S-635A-O132.0009.5154.7256.46122.12412.49219.829
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.000





GHDP-130S-485A-O232.00011.7045.6127.3519.0713.6793.901
GHDP-130S-535A-O232.00011.7085.6157.35612.7316.0737.901
GHDP-130S-585A-O232.00011.7255.6267.37416.7628.62612.307
GHDP-130S-635A-O232.00011.7575.6467.40921.16611.38917.121
GHDP-130S-685A-O232.00011.7385.6347.38825.87814.33422.271
GHDP-130S-485A-O532.00012.6336.3748.8847.5212.7942.777
GHDP-130S-535A-O532.00012.6386.3778.88911.1815.2776.778
GHDP-130S-585A-O532.00012.6556.3888.90815.2117.83211.184
GHDP-130S-635A-O532.00012.6866.4088.94219.61510.59515.997
GHDP-130S-685A-O532.00012.6686.3968.92224.32713.53921.147
GHDP-130S-735A-O532.00012.6476.3838.89929.39516.70026.688
GHDP-130S-535A-O632.000





GHDP-130S-585A-O632.00016.9508.18410.81013.2885.5065.995
GHDP-130S-635A-O632.00016.9818.20410.84417.6928.38010.809
GHDP-130S-685A-O632.00016.9628.19210.82322.40411.37015.959
GHDP-130S-735A-O632.00016.9428.17910.80127.47214.55721.499



Número do modelo
Torque máximo Nm
5,5 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.0271.1492.003
GHDP-085C-335A-O29.0003.8521.0211.1373.4902.1914.834
GHDP-085C-385A-O29.0003.8361.0151.1295.0603.2997.870
GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8104.2842.5675.096
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0902.4051.2001.460
GHDP-085C-385A-O59.0006.7731.8422.0823.9742.3454.497
GHDP-085C-435A-O59.0006.7651.8392.0785.7673.6187.964
GHDP-085C-385A-O69.0008.2782.2282.5033.4951.8642.767
GHDP-085C-435A-O69.0008.2702.2252.4985.2873.1596.235
GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5144.6882.2772.536
GHDP-100C-435A-O118.00010.5012.4272.5096.8213.8546.662
GHDP-100C-485A-O118.00010.4602.4102.4889.1995.55911.261
GHDP-100C-385A-O218.000





GHDP-100C-435A-O218.00012.3243.1643.4595.7383.0644.567
GHDP-100C-485A-O218.00012.2843.1483.4388.1164.7869.166
GHDP-100C-535A-O218.00012.2423.4763.52410.7176.49813.408
GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.00014.3904.1724.22810.0305.84411.385
GHDP-100C-585A-O318.00014.3904.1724.22812.7987.75516.265
GHDP-100C-535A-O418.00016.3174.9285.2869.0005.1339.570
GHDP-100C-585A-O418.00016.3174.9285.28611.7687.04414.449
GHDP-130C-435A-O132.00015.6344.3434.9707.0643.9516.659
GHDP-130C-485A-O132.00015.5814.3234.94210.1906.19212.706
GHDP-130C-535A-O132.00015.5884.3254.94613.6918.67119.478
GHDP-130C-585A-O132.00015.6154.3364.96017.54611.39026.935
GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.00019.3615.1245.7006.2322.4912.377
GHDP-130C-485A-O232.00019.3085.1035.6729.3585.1678.424
GHDP-130C-535A-O232.00019.3155.1065.67612.8597.68915.196
GHDP-130C-585A-O232.00019.3435.1175.69016.71410.42322.653
GHDP-130C-635A-O232.00019.3945.1375.71720.92513.39730.798
GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.8578.0084.3406.733
GHDP-130C-535A-O532.00020.7875.9136.86011.5106.86713.506
GHDP-130C-585A-O532.00020.8145.9246.87515.3659.60220.963
GHDP-130C-635A-O532.00020.8655.9446.90119.57512.57529.108
GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.3289.8384.7755.306
GHDP-130C-585A-O632.00027.9527.4628.34213.6937.63512.763
GHDP-130C-635A-O632.00028.0037.4828.36917.90410.66720.908
GHDP-130C-685A-O632.00027.9737.4708.35322.41313.86929.631
GHDP-130C-735A-O632.000






Número do modelo
Torque máximo Nm
5,5 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4972.3301.0791.355
GHDP-085S-335A-O29.0002.3351.1221.4744.0132.1433.194
GHDP-085S-385A-O29.0002.3251.1161.4635.8173.2705.167
GHDP-085S-435A-O29.0002.3201.1131.4587.8784.5547.420
GHDP-085S-335A-O39.0003.7971.8102.3553.1211.3011.428
GHDP-085S-385A-O39.0003.7871.8042.3454.9262.4653.401
GHDP-085S-435A-O39.0003.7821.8012.3396.9873.7605.654
GHDP-085S-335A-O59.0004.1192.0162.7082.7651.0441.038
GHDP-085S-385A-O59.0004.1102.0102.6974.5692.2393.011
GHDP-085S-435A-O59.0004.1042.0072.6926.6303.5375.264
GHDP-085S-385A-O69.0005.0212.4383.2434.0181.7041.911
GHDP-085S-435A-O69.0005.0152.4343.2376.0793.0314.163
GHDP-100S-385A-O118.0006.3422.7833.2595.3881.8481.829
GHDP-100S-435A-O118.0006.3362.7793.2527.8413.6164.510
GHDP-100S-485A-O118.0006.3112.7623.22510.5745.3557.498
GHDP-100S-535A-O118.0006.3152.7643.22813.6367.28010.844
GHDP-100S-585A-O118.0006.3152.7643.22815.8558.46212.978
GHDP-100S-385A-O218.000





GHDP-100S-435A-O218.0007.4633.5084.4836.5962.8023.149
GHDP-100S-485A-O218.0007.4383.4924.4569.3294.5676.137
GHDP-100S-535A-O218.0007.4413.4954.46012.3916.4999.484
GHDP-100S-585A-O218.0007.4413.4954.46014.8477.86211.938
GHDP-100S-535A-O318.0008.7364.3865.40011.0435.4037.337
GHDP-100S-585A-O318.0008.7364.3865.40014.0917.21710.482
GHDP-100S-535A-O418.0009.9065.1516.7509.9094.7286.167
GHDP-100S-585A-O418.0009.9065.1516.75012.9576.5429.312
GHDP-130S-435A-O132.0009.4954.7126.4398.1223.6924.524
GHDP-130S-485A-O132.0009.4624.6926.40311.7165.9808.452
GHDP-130S-535A-O132.0009.4664.6946.40815.7418.50712.852
GHDP-130S-585A-O132.0009.4834.7056.42620.17411.27517.697
GHDP-130S-635A-O132.0009.5154.7256.46125.01514.29322.988
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.00011.7375.6337.3877.1631.8671.815
GHDP-130S-485A-O232.00011.7045.6127.35110.7574.8005.743
GHDP-130S-535A-O232.00011.7085.6157.35614.7837.37610.144
GHDP-130S-585A-O232.00011.7255.6267.37419.21510.16714.988
GHDP-130S-635A-O232.00011.7575.6467.40924.05613.19620.280
GHDP-130S-685A-O232.00011.7385.6347.38829.24116.43225.947
GHDP-130S-485A-O532.00012.6336.3748.8849.2073.9984.620
GHDP-130S-535A-O532.00012.6386.3778.88913.2326.5839.020
GHDP-130S-585A-O532.00012.6556.3888.90817.6649.37313.865
GHDP-130S-635A-O532.00012.6866.4088.94222.50512.40219.156
GHDP-130S-685A-O532.00012.6686.3968.92227.69015.63724.824
GHDP-130S-735A-O532.00012.6476.3838.89933.26819.11130.920
GHDP-130S-535A-O632.00016.9338.17310.79111.3093.8713.832
GHDP-130S-585A-O632.00016.9508.18410.81015.7417.1248.676
GHDP-130S-635A-O632.00016.9818.20410.84420.58210.21913.968
GHDP-130S-685A-O632.00016.9628.19210.82325.76713.48719.635
GHDP-130S-735A-O632.00016.9428.17910.80131.34416.98325.732


Número do modelo
Torque máximo Nm
6 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.3391.3742.607
GHDP-085C-335A-O29.0003.8521.0211.1373.9382.5075.699
GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8104.8752.9866.239
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0902.8521.5332.325
GHDP-085C-385A-O59.0006.7731.8422.0824.5652.7665.639
GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.0008.2782.2282.5034.0852.2953.910
GHDP-085C-435A-O69.0008.2702.2252.4986.0413.6957.693
GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5145.3912.8073.895
GHDP-100C-435A-O118.00010.5012.4272.5097.7184.5018.397
GHDP-100C-485A-O118.00010.4602.4102.48810.3146.35013.418
GHDP-100C-385A-O218.00012.3343.1683.4644.3081.8671.800
GHDP-100C-435A-O218.00012.3243.1643.4596.6363.7206.303
GHDP-100C-485A-O218.00012.2843.1483.4389.2315.58211.323
GHDP-100C-535A-O218.00012.2423.4763.52412.0037.38615.676
GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.00014.3904.1724.22811.3166.73213.653
GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.00016.3174.9285.28610.2866.02111.837
GHDP-100C-585A-O418.00016.3174.9285.28613.3068.10617.160
GHDP-130C-435A-O132.00015.6344.3434.9708.2444.8038.941
GHDP-130C-485A-O132.00015.5814.3234.94211.6567.23215.542
GHDP-130C-535A-O132.00015.5884.3254.94615.4769.93022.930
GHDP-130C-585A-O132.00015.6154.3364.96019.68012.89231.062
GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.000





GHDP-130C-435A-O232.00019.3615.1245.7007.4123.7294.659
GHDP-130C-485A-O232.00019.3085.1035.67210.8246.22911.260
GHDP-130C-535A-O232.00019.3155.1065.67614.6438.95618.648
GHDP-130C-585A-O232.00019.3435.1175.69018.84811.93226.780
GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.8579.4755.4069.570
GHDP-130C-535A-O532.00020.7875.9136.86013.2948.13516.957
GHDP-130C-585A-O532.00020.8145.9246.87517.49811.11025.090
GHDP-130C-635A-O532.00020.8655.9446.90122.08914.34733.970
GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32811.6226.1198.758
GHDP-130C-585A-O632.00027.9527.4628.34215.8269.17716.890
GHDP-130C-635A-O632.00028.0037.4828.36920.41712.45425.770
GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Número do modelo
Torque máximo Nm
6 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4972.6891.3091.747
GHDP-085S-335A-O29.0002.3351.1221.4744.5272.4653.756
GHDP-085S-385A-O29.0002.3251.1161.4636.4963.6945.909
GHDP-085S-435A-O29.0002.3201.1131.4588.7455.0948.367
GHDP-085S-335A-O39.0003.7971.8102.3553.6361.6401.990
GHDP-085S-385A-O39.0003.7871.8042.3455.6052.8934.143
GHDP-085S-435A-O39.0003.7821.8012.3397.8544.3026.601
GHDP-085S-335A-O59.0004.1192.0162.7083.2791.4061.600
GHDP-085S-385A-O59.0004.1102.0102.6975.2492.6683.753
GHDP-085S-435A-O59.0004.1042.0072.6927.4974.0796.211
GHDP-085S-385A-O69.0005.0212.4383.2434.6972.1492.653
GHDP-085S-435A-O69.0005.0152.4343.2376.9463.5785.111
GHDP-100S-385A-O118.0006.3422.7833.2596.1962.5332.713
GHDP-100S-435A-O118.0006.3362.7793.2528.8724.2775.638
GHDP-100S-485A-O118.0006.3112.7623.22511.8576.1638.899
GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4904.9511.3831.352
GHDP-100S-435A-O218.0007.4633.5084.4837.6273.4784.277
GHDP-100S-485A-O218.0007.4383.4924.45610.6125.3797.539
GHDP-100S-535A-O218.0007.4413.4954.46013.9517.47711.189
GHDP-100S-585A-O218.0007.4413.4954.46016.5408.87013.685
GHDP-100S-535A-O318.0008.7364.3865.40012.4596.2468.798
GHDP-100S-585A-O318.0008.7364.3865.40015.7848.22512.229
GHDP-100S-535A-O418.0009.9065.1516.75011.3255.5717.628
GHDP-100S-585A-O418.0009.9065.1516.75014.6507.55011.059
GHDP-130S-435A-O132.0009.4954.7126.4399.4784.5636.006
GHDP-130S-485A-O132.0009.4624.6926.40313.4027.04110.295
GHDP-130S-535A-O132.0009.4664.6946.40817.7939.78915.094
GHDP-130S-585A-O132.0009.4834.7056.42622.62612.80520.378
GHDP-130S-635A-O132.0009.5154.7256.46127.90516.09326.147
GHDP-130S-385A-O232.000





GHDP-130S-435A-O232.00011.7375.6337.3878.5203.2923.298
GHDP-130S-485A-O232.00011.7045.6127.35112.4435.8887.586
GHDP-130S-535A-O232.00011.7085.6157.35616.8348.67112.386
GHDP-130S-585A-O232.00011.7255.6267.37421.66811.70417.669
GHDP-130S-635A-O232.00011.7575.6467.40926.94615.00123.439
GHDP-130S-685A-O232.00011.7385.6347.38832.60418.52929.623
GHDP-130S-485A-O532.00012.6336.3748.88410.8935.0936.463
GHDP-130S-535A-O532.00012.6386.3778.88915.2847.87811.263
GHDP-130S-585A-O532.00012.6556.3888.90820.11710.90916.546
GHDP-130S-635A-O532.00012.6866.4088.94225.39514.20522.316
GHDP-130S-685A-O532.00012.6686.3968.92231.05317.73228.500
GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79113.3605.5556.074
GHDP-130S-585A-O632.00016.9508.18410.81018.1948.70111.357
GHDP-130S-635A-O632.00016.9818.20410.84423.47212.04517.127
GHDP-130S-685A-O632.00016.9628.19210.82329.13015.59623.311
GHDP-130S-735A-O632.000








Número do modelo
Torque máximo Nm
7 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1552.9641.8193.816
GHDP-085C-335A-O29.0003.8521.0211.1374.8323.1387.429
GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.0006.2511.6371.8106.0563.8228.524
GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0903.7462.1814.055
GHDP-085C-385A-O59.0006.7731.8422.0825.7463.6037.924
GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.0008.2782.2282.5035.2673.1446.195
GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5146.7973.8366.614
GHDP-100C-435A-O118.00010.5012.4272.5099.5135.78211.869
GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.00012.3343.1683.4645.7143.0464.519
GHDP-100C-435A-O218.00012.3243.1643.4598.4305.0129.774
GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.000





GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.00016.3174.9285.28612.8597.79716.372
GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.00015.6344.3434.97010.6036.48513.505
GHDP-130C-485A-O132.00015.5814.3234.94214.5899.30521.215
GHDP-130C-535A-O132.00015.5884.3254.94619.04512.44529.833
GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.00019.3755.1295.7076.2002.4312.315
GHDP-130C-435A-O232.00019.3615.1245.7009.7715.4689.223
GHDP-130C-485A-O232.00019.3085.1035.67213.7578.32816.934
GHDP-130C-535A-O232.00019.3155.1065.67618.21211.48325.551
GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.85712.4087.50615.243
GHDP-130C-535A-O532.00020.7875.9136.86016.86310.66123.861
GHDP-130C-585A-O532.00020.8145.9246.87521.76514.11933.344
GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32815.1918.71915.661
GHDP-130C-585A-O632.00027.9527.4628.34220.09312.22425.144
GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Número do modelo
Torque máximo Nm
7 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4973.4071.7632.533
GHDP-085S-335A-O29.0002.3351.1221.4745.5553.1074.880
GHDP-085S-385A-O29.0002.3251.1161.4637.8554.5397.394
GHDP-085S-435A-O29.000





GHDP-085S-335A-O39.0003.7971.8102.3554.6642.2993.114
GHDP-085S-385A-O39.0003.7871.8042.3456.9633.7455.628
GHDP-085S-435A-O39.0003.7821.8012.3399.5885.3848.496
GHDP-085S-335A-O59.0004.1192.0162.7084.3072.0722.724
GHDP-085S-385A-O59.0004.1102.0102.6976.6073.5225.238
GHDP-085S-435A-O59.0004.1042.0072.6929.2315.1628.106
GHDP-085S-385A-O69.0005.0212.4383.2436.0553.0164.137
GHDP-085S-435A-O69.0005.0152.4343.2378.6804.6667.006
GHDP-100S-385A-O118.0006.3422.7833.2597.8133.5984.479
GHDP-100S-435A-O118.0006.3362.7793.25210.9365.5837.893
GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4906.5672.7833.118
GHDP-100S-435A-O218.0007.4633.5084.4839.6904.7966.532
GHDP-100S-485A-O218.0007.4383.4924.45613.1766.99110.342
GHDP-100S-535A-O218.000





GHDP-100S-585A-O218.000





GHDP-100S-535A-O318.0008.7364.3865.40015.2917.93211.721
GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.0009.9065.1516.75014.1577.25710.551
GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.0009.4954.7126.43912.1916.2808.971
GHDP-130S-485A-O132.0009.4624.6926.40316.7749.15213.981
GHDP-130S-535A-O132.0009.4664.6946.40821.89612.35019.579
GHDP-130S-585A-O132.0009.4834.7056.42627.53215.86125.740
GHDP-130S-635A-O132.0009.5154.7256.46133.68519.69132.466
GHDP-130S-385A-O232.00011.7455.6397.3967.1261.8271.775
GHDP-130S-435A-O232.00011.7375.6337.38711.2325.1096.263
GHDP-130S-485A-O232.00011.7045.6127.35115.8158.02911.272
GHDP-130S-535A-O232.00011.7085.6157.35620.93711.24616.871
GHDP-130S-585A-O232.00011.7255.6267.37426.57414.76923.032
GHDP-130S-635A-O232.00011.7575.6467.40932.72718.60629.757
GHDP-130S-685A-O232.00011.7385.6347.38839.33022.71836.976
GHDP-130S-485A-O532.00012.6336.3748.88414.2657.23610.149
GHDP-130S-535A-O532.00012.6386.3778.88919.38710.45215.748
GHDP-130S-585A-O532.00012.6556.3888.90825.02313.97321.908
GHDP-130S-635A-O532.00012.6866.4088.94231.17617.80828.634
GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79117.4648.23410.559
GHDP-130S-585A-O632.00016.9508.18410.81023.10011.81016.720
GHDP-130S-635A-O632.00016.9818.20410.84429.25315.67323.445
GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000








Número do modelo
Torque máximo Nm
8,5 BAR ASSIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085C-280A-O29.0003.8871.0351.1553.9012.4825.629
GHDP-085C-335A-O29.000





GHDP-085C-385A-O29.000





GHDP-085C-435A-O29.000





GHDP-085C-385A-O39.000





GHDP-085C-435A-O39.000





GHDP-085C-335A-O59.0006.7891.8482.0905.0883.1376.650
GHDP-085C-385A-O59.000





GHDP-085C-435A-O59.000





GHDP-085C-385A-O69.000





GHDP-085C-435A-O69.000





GHDP-085C-485A-O69.000





GHDP-100C-385A-O118.00010.5112.4312.5148.9055.35010.693
GHDP-100C-435A-O118.000





GHDP-100C-485A-O118.000





GHDP-100C-385A-O218.00012.3343.1683.4647.8224.5768.598
GHDP-100C-435A-O218.000





GHDP-100C-485A-O218.000





GHDP-100C-535A-O218.000





GHDP-100C-585A-O218.000





GHDP-100C-535A-O318.000





GHDP-100C-585A-O318.000





GHDP-100C-535A-O418.000





GHDP-100C-585A-O418.000





GHDP-130C-435A-O132.00015.6344.3434.97014.1428.98920.350
GHDP-130C-485A-O132.00015.5814.3234.94218.98912.40629.725
GHDP-130C-535A-O132.000





GHDP-130C-585A-O132.000





GHDP-130C-635A-O132.000





GHDP-130C-385A-O232.00019.3755.1295.7078.9724.8857.677
GHDP-130C-435A-O232.00019.3615.1245.70013.3108.00916.069
GHDP-130C-485A-O232.00019.3085.1035.67218.15611.44325.443
GHDP-130C-535A-O232.000





GHDP-130C-585A-O232.000





GHDP-130C-635A-O232.000





GHDP-130C-685A-O232.000





GHDP-130C-485A-O532.00020.7805.9116.85716.80710.62123.753
GHDP-130C-535A-O532.00020.7875.9136.86022.21614.43734.216
GHDP-130C-585A-O532.000





GHDP-130C-635A-O532.000





GHDP-130C-685A-O532.000





GHDP-130C-735A-O532.000





GHDP-130C-535A-O632.00027.9257.4518.32820.54412.54426.016
GHDP-130C-585A-O632.000





GHDP-130C-635A-O632.000





GHDP-130C-685A-O632.000





GHDP-130C-735A-O632.000






Número do modelo
Torque máximo Nm
8,5 BAR SIMÉTRICO - Normalmente aberto Torque Output (Nm)
BTORTOETOBTCRTCETC
GHDP-085S-280A-O29.0002.3561.1361.4974.4852.4393.710
GHDP-085S-335A-O29.0002.3351.1221.4747.0984.0686.566
GHDP-085S-385A-O29.0002.3251.1161.4639.8925.8079.620
GHDP-085S-435A-O29.000





GHDP-085S-335A-O39.0003.7971.8102.3556.2063.2714.800
GHDP-085S-385A-O39.0003.7871.8042.3459.0005.0187.854
GHDP-085S-435A-O39.000





GHDP-085S-335A-O59.0004.1192.0162.7085.8503.0474.410
GHDP-085S-385A-O59.0004.1102.0102.6978.6444.7967.465
GHDP-085S-435A-O59.000





GHDP-085S-385A-O69.0005.0212.4383.2438.0934.2986.364
GHDP-085S-435A-O69.000





GHDP-100S-385A-O118.0006.3422.7833.25910.2375.1427.129
GHDP-100S-435A-O118.000





GHDP-100S-485A-O118.000





GHDP-100S-535A-O118.000





GHDP-100S-585A-O118.000





GHDP-100S-385A-O218.0007.4693.5124.4908.9924.3535.768
GHDP-100S-435A-O218.0007.4633.5084.48312.7856.7469.915
GHDP-100S-485A-O218.000





GHDP-100S-535A-O218.000





GHDP-100S-585A-O218.000





GHDP-100S-535A-O318.000





GHDP-100S-585A-O318.000





GHDP-100S-535A-O418.000





GHDP-100S-585A-O418.000





GHDP-130S-435A-O132.0009.4954.7126.43916.2608.83113.419
GHDP-130S-485A-O132.0009.4624.6926.40321.83212.31019.509
GHDP-130S-535A-O132.0009.4664.6946.40828.05116.18326.307
GHDP-130S-585A-O132.0009.4834.7056.42634.89120.44133.784
GHDP-130S-635A-O132.000





GHDP-130S-385A-O232.00011.7455.6397.39610.3144.5105.258
GHDP-130S-435A-O232.00011.7375.6337.38715.3017.70410.710
GHDP-130S-485A-O232.00011.7045.6127.35120.87311.20616.801
GHDP-130S-535A-O232.00011.7085.6157.35627.09215.09223.598
GHDP-130S-585A-O232.00011.7255.6267.37433.93319.35731.075
GHDP-130S-635A-O232.000





GHDP-130S-685A-O232.00011.7385.6347.38849.42028.99748.004
GHDP-130S-485A-O532.00012.6336.3748.88419.32310.41215.677
GHDP-130S-535A-O532.00012.6386.3778.88925.54114.29622.475
GHDP-130S-585A-O532.00012.6556.3888.90832.38218.55929.952
GHDP-130S-635A-O532.000





GHDP-130S-685A-O532.000





GHDP-130S-735A-O532.000





GHDP-130S-535A-O632.00016.9338.17310.79123.61812.13717.286
GHDP-130S-585A-O632.00016.9508.18410.81030.45916.42924.763
GHDP-130S-635A-O632.000





GHDP-130S-685A-O632.000





GHDP-130S-735A-O632.000







CICLO DE PINTURA ACTUATECH
A pintura dos atuadores de serviço pesado (padrão ACTUATECH), mostrada na tabela, permite a instalação dos atuadores em ambientes externos: fábricas de produtos químicos, gasodutos, refinarias e aplicações Off-shore. Disponíveis a pedido, de acordo com as especificações do cliente.


PREPARAÇÃO GD SUPERFÍCIE
 SANDBLASTING GRADE SA 2.1 / 2
Revestimento
Tipo de tinta   ESPESSURA
Primeira mão
Galvanizado inorgánico 75 µ
Mão intermediária
Epoxy110 µ
Mão final Poliuretano 40 µ

ESPESSURA TOTAL
 225 µ
Barnizado estándar: RAL

CORPO CENTRAL - CONFIGURAÇÕES DISPONÍVEIS

Design assimétrico

Torque de partida de abertura (BTO) muito alto, com uma queda acentuada no valor do torque entregue na fase final (ETO) da manobra de abertura. Torque inicial de fechamento (BTC) significativamente menor que o torque de abertura (BTO).

Design simétrico

A curva de torque mais equilibrada, os valores do BTO-ETO BTC-ETC são semelhantes

Para maiores informações consultar o Catálogo de Acessórios ACTUATECH.

Bomba
Cilindro hidráulico
Reservatório de óleo
Válvula de não retorno
Válvula de segurança

COMANDO HIDRÁULICO MANUAL DE EMERGÊNCIA

COMANDO MANUAL DE EMERGÊNCIA A PARAFUSO PARA ATUADOR EFEITO SIMPLES

Conector - Junta

O design do atuador forneceu conexões em conformidade com as mais recentes normas internacionais para permitir e facilitar a montagem em válvulas e acessórios. A Actuatech conclui seu serviço com kits de montagem, conectores e juntas, a pedido.

Design de Construção Modular

O design modular dos atuadores HEAVY DUTY ACTUATECH garante total versatilidade de aplicação.
A construção modular permite que os componentes sejam montados com base nos requisitos da aplicação.
